Галоўная > прадукты > Труба і трубка > Трубы з вугляродзістай сталі
| Месца паходжання: | Горад Ляочэн, правінцыя Шаньдун, Кітай |
| Фірмовае найменне: | Shandong Liaocheng Jinzheng Steel pipe Co., LTD |
| Нумар мадэлі: | A192/ASTM A210 Труба катла |
| атэстацыя: | ISO/SGS |
| Мінімальная колькасць замовы: | 5 ТОН |
| цана: | 580$/ТОНА |
| Упакоўка Падрабязнасці: | Экспарт стандартнага пакета |
| Тэрмін пастаўкі: | 7-10days |
| Умовы аплаты: | TT або LC |
| Магчымасць пастаўкі: | 700 тон/тыдзень |
Апісанне:

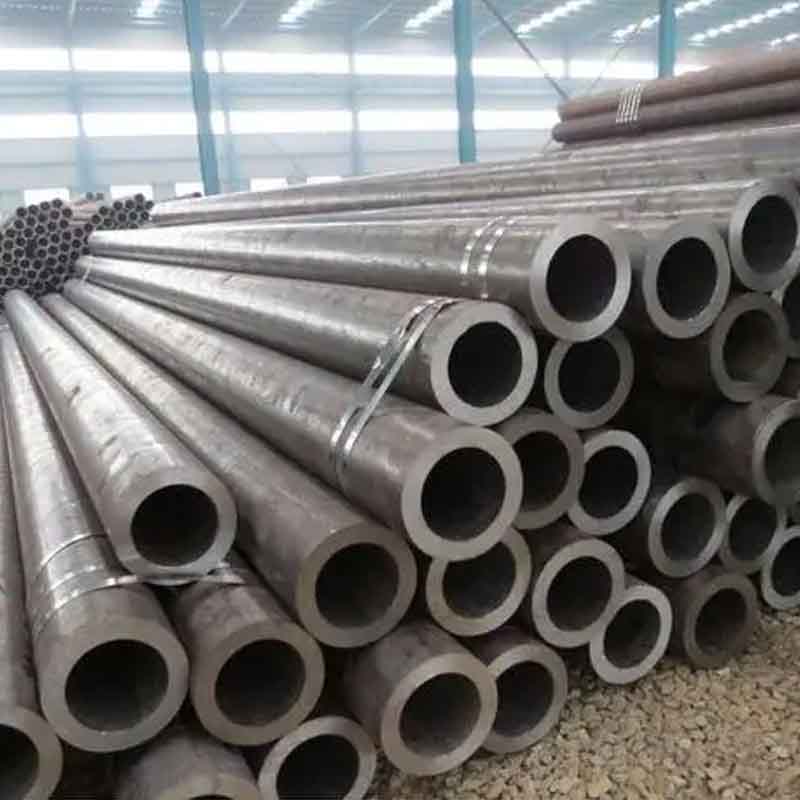

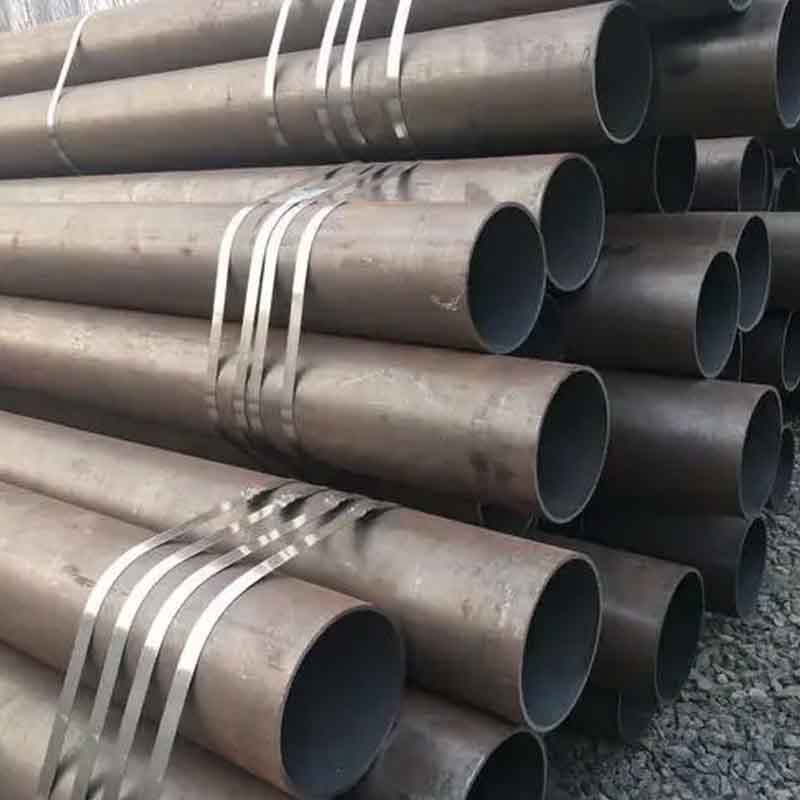

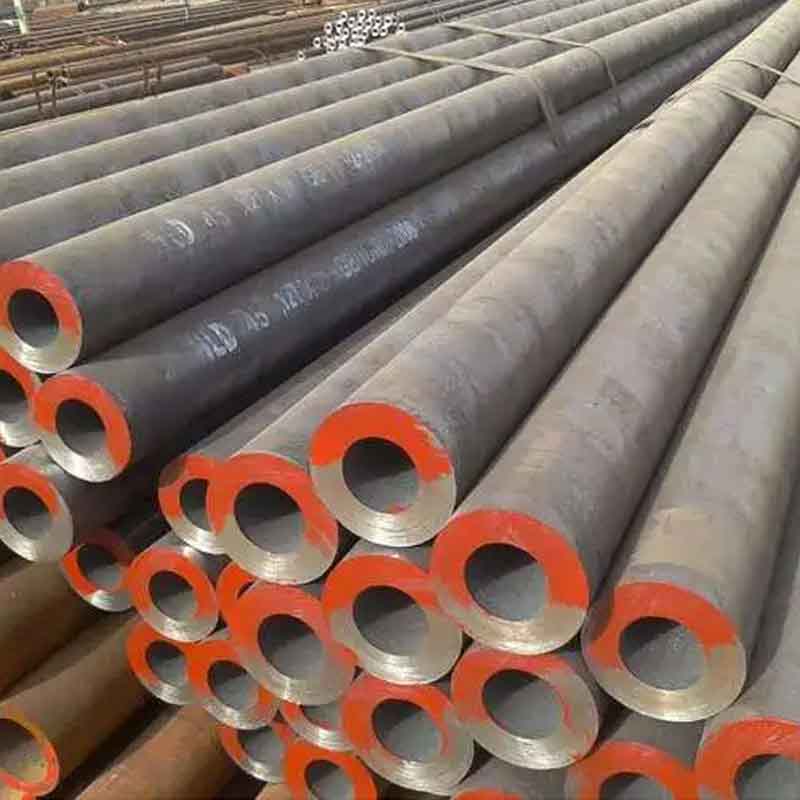

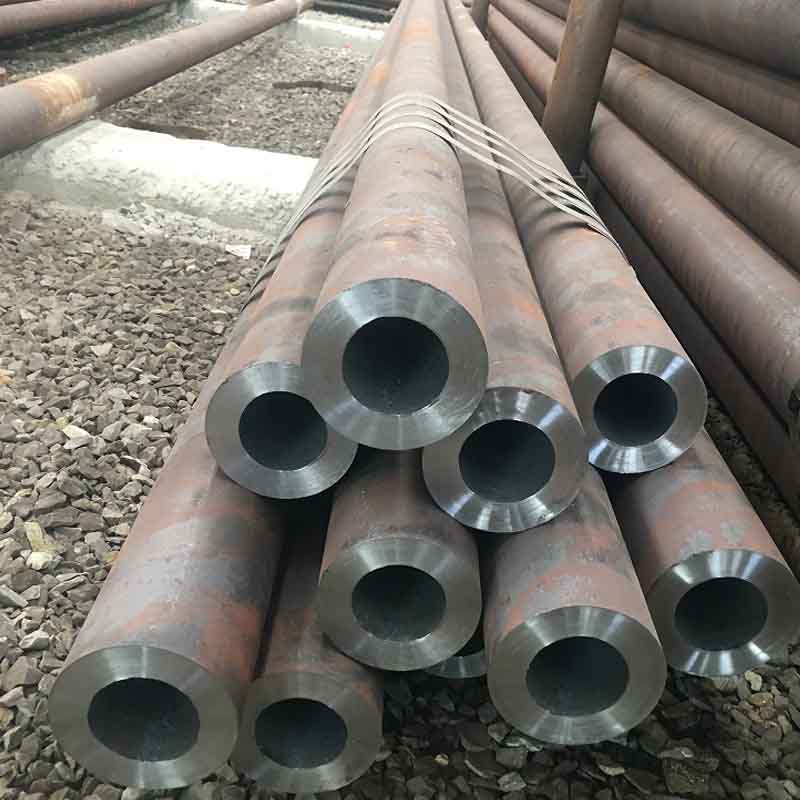

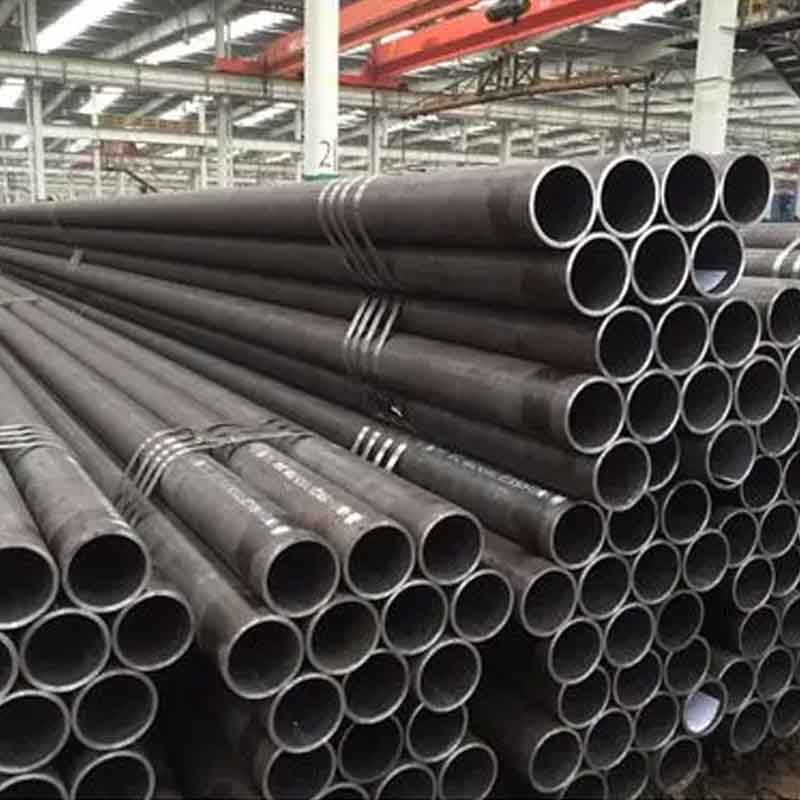

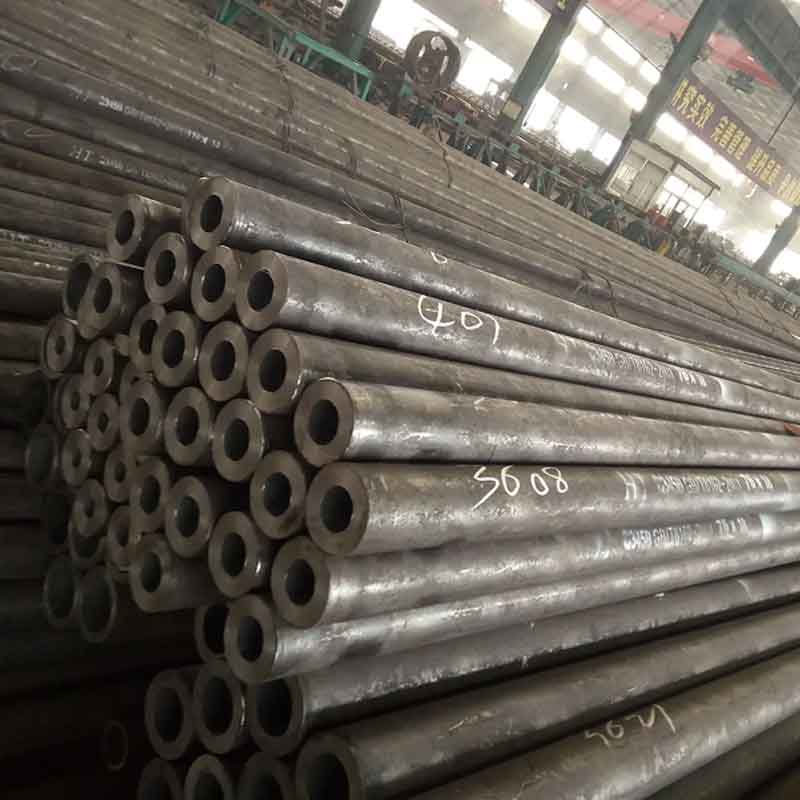

Boiler tube is a type of seamless tube. The manufacturing method is the same as seamless pipes, but there are strict requirements for the type of steel used in the manufacturing of steel pipes. According to the usage temperature, it is divided into two types: general boiler tubes and high-pressure boiler tubes.
①Generally, boiler tubes are used at temperatures below 350 ℃, while domestically produced tubes are mainly made of hot-rolled or cold drawn carbon steel tubes of grades 10 and 20。
②High pressure boiler tubes are often subjected to high temperature and high pressure conditions during use. Under the action of high-temperature flue gas and water vapor, the tubes will undergo oxidation and corrosion. Steel pipes are required to have high durability, high oxidation and corrosion resistance, and good structural stability.
1.міжнародны стандарт
- ASTM A192/A192M-17:
This standard applies to high-pressure boilers (exceeding 350 MPa)The boiler tube is required to be able to withstand high temperature and high pressure conditions Work and have good pressure resistance and strength.
- ASTM A210/A210M-19:
This standard applies to the boiler tubes of low and medium pressure boilers (not exceeding 500 MPa), requiring the tubes to have high pressure resistance and heat resistance, and be able to withstand high temperature and high pressure conditions.
- ASTM A213/A213M-19:
This standard applies to seamless and welded boiler tubes used in high-temperature environments for boilers and heat exchangers. The tubes are required to withstand high temperature and high pressure conditions, and have high corrosion resistance and heat resistance
Асноўныя маркі сталёвых труб, якія выпускаюцца:
10、20、20G、20MnG、25MnG、15CrMoG、12Cr2MoG、12Cr1MoVG、12Cr2MoWVTiB、10Cr9Mo1VNb、SA210A1、SA210C、SA213 T11、SA213 T12、SA213 T22、SA213 T23、SA213 T91、SA213 T92、ST45.8/Ⅲ、15Mo3、13CrMo44、10CrMo910，etc.
GB3087- Кітайскі нацыянальны стандарт
GB5310- Кітайскі нацыянальны стандарт
ASME SA210 - Амерыканскі кодэкс катлоў і сасудаў высокага ціску
ASME SA213 - Амерыканскі кодэкс катлоў і сасудаў высокага ціску
DIN17175- Федэральны нямецкі прамысловы стандарт
Тэхнічныя характарыстыкі:
механічныя ўласцівасці
| Стандарты выканання | Марка сталі | Трываласць на разрыў (МПа) | Мяжа цякучасці (МПа) | падаўжэнне（%） | цвёрдасць |
| GB3087 | 10 | 335～475 | ≥195 | ≥24 | / |
| 20 | 410～550 | ≥245 | ≥20 | / | |
| GB5310 | 20G | 410～550 | ≥245 | ≥24 | / |
| 20MnG | ≥415 | ≥240 | ≥22 | / | |
| 25MnG | ≥485 | ≥275 | ≥20 | / | |
| 15CrMoG | 440～640 | ≥235 | ≥21 | / | |
| 12Cr2MoG | 450～600 | ≥280 | ≥20 | / | |
| 12Cr1MoVG | 470～640 | ≥255 | ≥21 | / | |
| 12Cr2MoWVTiB | 540～735 | ≥345 | ≥18 | / | |
| 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | / | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| SA210C | ≥485 | ≥275 | ≥30 | ≤179HB | / |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB | |
| SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB | |
| SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB | |
| SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB | |
| SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB | |
| DIN17175 | ST45.8/Ⅲ | 410～530 | ≥255 | ≥21 | / |
| 15Mo3 | 450～600 | ≥270 | ≥22 | / | |
| 13CrMo44 | 440～590 | ≥290 | ≥22 | / | |
| 10CrMo910 | 480～630 | ≥280 | ≥20 | / |
| GB3087
хімічны склад (%) |
|||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | |||||||||||||||||||||||||||||||||
| 10 | 0.07 ~ 0.13 |
0.17 ~ 0.37 |
0.38～0.65 | ≤ 0.030 | ≤ 0.0 30 |
0.3 ~ 0.65 |
/ | ≤ 0.25 | ≤ 0.30 | 10 | 0.07 ~ 0.13 |
||||||||||||||||||||||||||||||||
| 20 | 0.17 ~ 0.23 |
0.17 ~ 0.37 |
0.38～0.65 | ≤ 0.030 | ≤ 0.0 30 |
0.3 ~ 0.65 |
/ | ≤ 0.25 | ≤ 0.30 | 20 | 0.17 ~ 0.23 |
||||||||||||||||||||||||||||||||
| GB5310
хімічны склад (%) |
|||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | W | Ti | Nb | N | |||||||||||||||||||||||||||||
| 20G | 0.17 ~ 0.24 |
0.17 ~ 0.37 |
0.35 ~ 0.65 |
≤ 0.030 | ≤0. 030 |
≤ 0.2 5 |
≤ 0.1 5 |
≤ 0 . 20 |
≤ 0.25 | ≤ 0.0 8 |
|||||||||||||||||||||||||||||||||
| 20 млн G |
0.17 ~ 0.24 |
0.17 ~ 0.37 |
0.70 ~ 1.00 |
≤ 0.030 | ≤0. 030 |
≤ 0.2 5 |
≤ 0.1 5 |
≤ 0 . 20 |
≤ 0.25 | ≤ 0.0 8 |
|||||||||||||||||||||||||||||||||
| 25 млн G |
0.18 ~ 0.24 |
0.17 ~ 0.37 |
0.80 ~ 1.10 |
≤ 0.030 | ≤0. 030 |
≤ 0.2 5 |
≤ 0.1 5 |
≤ 0 . 20 |
≤ 0.25 | ≤ 0.0 8 |
|||||||||||||||||||||||||||||||||
| 15CrM o |
0.12 ~ 0.18 |
0.17 ~ 0.37 |
0.40 ~ 0.70 |
≤ 0.030 | ≤0. 030 |
0.80 ~ 1.10 |
0.40 ~ 0.55 |
≤ 0 . 20 |
≤ 0.30 | ||||||||||||||||||||||||||||||||||
| 12Cr2 MoG |
0.08 ~ 0.15 |
≤ 0.50 | 0.40 ~ 0.70 |
≤ 0.030 | ≤0. 030 |
2.00 ~ 2.50 |
0.90 ~ 1.20 |
≤ 0 . 20 |
≤ 0.30 | ||||||||||||||||||||||||||||||||||
| 12Cr1 MoV |
0.08 ~ 0.15 |
0.17 ~ 0.37 |
0.40 ~ 0.70 |
≤ 0.030 | ≤0. 030 |
0.90 ~ 1.20 |
0.25 ~ 0.35 |
≤ 0.20 | ≤ 0.30 | ||||||||||||||||||||||||||||||||||
| 12Cr2 MoWV TiB |
0.08 ~ 0.15 |
0.45 ~ 0.75 |
0.45 ~ 0.65 |
≤ 0.030 | ≤ 0.030 | 1.60～2.10 | 0.50 ~ 0.65 |
≤ 0.20 | ≤ 0.30 | 0.28 ~ 0.42 |
/ | 0.30 ~ 0.55 |
0.08 ~ 0.15 |
B 0.002～ 0.008 |
|||||||||||||||||||||||||||||
| 10Cr9 Mo1V Nb |
0.08 ~ 0.12 |
0.20 ~ 0.50 |
0.30 ~ 0.60 |
≤ 0.020 | ≤0. 010 |
8.00 ~ 9.50 |
0.85 ~ 1.05 |
≤ 0 . 20 |
≤ 0.40 | 0.18 ~ 0.25 |
≤ 0.0 15 |
/ | / | 0.06～0.10 | 0.03 ~ 0.07 |
||||||||||||||||||||||||||||
| ASME SA210
хімічны склад (%) |
|||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | |||||||||||||||||||||||||||||||||||||
| -1 | 0.13～0.19 | ≥0.1 | 0.45～0.65 | ≤ 0.030 | ≤ 0.030 | ||||||||||||||||||||||||||||||||||||||
| C | 0.18～0.24 | ≥0.1 | 0.80～1.10 | ≤ 0.030 | ≤ 0.030 | 0.18～0.24 | |||||||||||||||||||||||||||||||||||||
| ASME SA213
хімічны склад (%) |
|||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Ni | V | Al | W | Ti | Nb | N | ||||||||||||||||||||||||||||||
| T11 | 0.05 ~ 0.15 |
0.50～1.0 | 0.30 ~ 0.60 |
≤0. 030 |
≤0. 030 |
1.00 ~ 1.50 |
0.50 ~ 1.00 |
||||||||||||||||||||||||||||||||||||
| T12 | 0.05 ~ 0.15 |
≤ 0.50 | 0.30 ~ 0.61 |
≤0. 030 |
≤0. 030 |
0.80 ~ 1.25 |
0.44 ~ 0.65 |
||||||||||||||||||||||||||||||||||||
| T22 | 0.05 ~ 0.15 |
≤ 0.50 | 0.30 ~ 0.60 |
≤0. 030 |
≤0. 010 |
1.90 ~ 2.60 |
0.87 ~ 1.13 |
||||||||||||||||||||||||||||||||||||
| T23 | 0.04 ~ 0.10 |
≤ 0.50 | 0.10 ~ 0.60 |
≤0. 030 |
≤0. 030 |
1.90 ~ 2.60 |
0.05 ~ 0.30 |
/ | ≤ 0.0 30 |
1.45～1.75 | B 0.0005～ 0.006 |
0.02 ~ 0.08 |
≤ 0.0 40 |
||||||||||||||||||||||||||||||
| T91 | 0.08 ~ 0.12 |
0.20～0.50 | 0.30 ~ 0.60 |
≤0. 020 |
≤0. 010 |
8.00 ~ 9.50 |
0.85 ~ 1.05 |
≤ 0.40 | 0.18 ~ 0.25 |
≤ 0.0 15 |
/ | / | 0.06 ~ 0.10 |
0.03 ~ 0.07 |
|||||||||||||||||||||||||||||
| T92 | 0.07 ~ 0.13 |
≤ 0.50 | 0.30 ~ 0.60 |
≤0. 020 |
≤0. 010 |
8.50 ~ 9.50 |
0.30 ~ 0.60 |
≤ 0.40 | 0.15 ~ 0.25 |
≤ 0.01 5 |
1.50～2.00 | B 0.001～ 0.006 |
0.04 ~ 0.09 |
0.03 ~ 0.07 |
|||||||||||||||||||||||||||||
| DIN 17175
хімічны склад (%) |
|||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | |||||||||||||||||||||||||||||||||
| ST45.8/Ⅲ | ≤ 0.21 | 0.10～0.35 | 0.40～1.20 | ≤ 0.040 | ≤ 0.040 | ||||||||||||||||||||||||||||||||||||||
| 15Mo3 | 0.12 ~ 0.20 |
0.10～0.35 | 0.40 ~ 0.80 |
≤ 0.035 | ≤ 0.0 35 |
/ | 0.25 ~ 0.35 |
/ | / | / | |||||||||||||||||||||||||||||||||
| 13CrMo44 | 0.10 ~ 0.18 |
0.10～0.35 | 0.40 ~ 0.70 |
≤ 0.035 | ≤ 0.0 35 |
0.70 ~ 1.10 |
0.45 ~ 0.65 |
/ | / | / | |||||||||||||||||||||||||||||||||
| 10CrMo91 0 |
0.08 ~ 0.15 |
≤ 0.50 | 0.30 ~ 0.70 |
≤ 0.025 | ≤ 0.0 20 |
2.00 ~ 2.50 |
0.90 ~ 1.10 |
≤ 0.30 | ≤ 0.30 | / | ≤ 0.015 | ||||||||||||||||||||||||||||||||
Хуткая дэталь:
Ужыванне:
Асноўнае выкарыстанне
① General boiler tubes are mainly used to manufacture water-cooled wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes, and arch brick tubes.
② High pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, air ducts, and main steam tubes for high-pressure and ultra-high pressure boilers.
Тэхнічныя характарыстыкі:
(1) GB3087-2008 Seamless Steel Pipes for Low and Medium Pressure Boilers. There are 43 different specifications of steel pipes for boilers with various structures, with an outer diameter of 10-426mm. There are a total of 29 types with a wall thickness of 1.5-26mm.
(2) GB5310-2008 Seamless Steel Pipes for High Pressure Boilers The outer diameter of hot-rolled pipes ranges from 22 to 530mm, and the wall thickness ranges from 20 to 70mm. Cold drawn (cold-rolled) pipes have an outer diameter of 10-108mm and a wall thickness ranging from 2.0-13.0mm.
(3) According to GB3087-2008 Seamless Steel Pipes for Low and Medium Pressure Boilers and GB5310-95 Seamless Steel Pipes for High Pressure Boilers. Appearance quality: The inner and outer surfaces of the steel pipe are not allowed to have cracks, folds, folds, scars, delamination, or hairlines.
| Табліца кацельных труб | |||
| OD*таўшчыня | OD*таўшчыня | OD*таўшчыня | OD*таўшчыня |
| 14*3 | 38*5.5 | 89*5 | 133*18 |
| 14*3.5 | 42*3 | 89*5.5 | 159*6 |
| 14*4 | 42*3.5 | 89*6 | 159*6.5 |
| 16*3 | 42*4 | 89*7 | 159*7 |
| 18*2 | 42*5 | 89*7.5 | 159*8 |
| 18*3 | 42*6 | 89*8 | 159*9.5 |
| 18*4 | 42*8 | 89*9 | 159*10 |
| 18*5 | 45*3 | 89*10 | 159*12 |
| 19*2 | 45*4 | 89*11 | 159*14 |
| 21*4 | 45*5 | 89*12 | 159*16 |
| 22*2.5 | 45*6 | 108*4.5 | 159*18 |
| 22*3 | 45*7 | 108*5 | 159*20 |
| 22*4 | 48*4 | 108*6 | 159*28 |
| 22*5 | 48*4.5 | 108*7 | 168*6 |
| 25*2.5 | 48*5 | 108*8 | 168*7 |
| 25*3 | 48*6 | 108*9 | 168*8 |
| 25*4 | 48*7 | 108*10 | 168*9.5 |
| 25*5 | 48.3*12.5 | 108*12 | 168*10 |
| 25*5.5 | 51*3 | 108*14 | 168*11 |
| 27*3.5 | 51*3.5 | 108*15 | 168*12 |
| 27*4 | 51*4 | 108*16 | 168*14 |
| 27*5 | 51*5 | 108*20 | 168*15 |
| 27*5.5 | 51*6 | 114*5 | 168*16 |
| 28*2.5 | 57*4 | 114*6 | 168*18 |
| 28*3 | 57*5 | 114*7 | 168*20 |
| 28*3.5 | 57*5.5 | 114*8 | 168*22 |
| 28*4 | 57*6 | 114*8.5 | 168*25 |
| 30*2.5 | 60*4 | 114*9 | 168*28 |
| 32*2.5 | 60*4 | 114*10 | 180*10 |
| 32*3 | 60*5 | 114*11 | 194*10 |
| 32*3.5 | 60*6 | 114*12 | 194*12 |
| 32*4 | 60*7 | 114*13 | 194*14 |
| 32*4.5 | 60*8 | 114*14 | 194*16 |
| 32*5 | 60*9 | 114*16 | 194*18 |
| 34*3 | 60*10 | 114*18 | 194*20 |
| 34*4 | 76*4.5 | 133*5 | 194*26 |
| 34*4.5 | 76*5 | 133*6 | 219*6.5 |
| 34*5 | 76*6 | 133*7 | 219*7 |
| 34*6.5 | 76*7 | 133*8 | 219*8 |
| 38*3 | 76*8 | 133*10 | 219*9 |
| 38*3.5 | 76*9 | 133*12 | 219*10 |
| 38*4 | 76*10 | 133*13 | 219*12 |
| 38*4.5 | 89*4 | 133*14 | 219*13 |
| 38*5 | 89*4.5 | 133*16 | 219*14 |
| 219*16 | 273*36 | 356*28 | 426*12 |
| 219*18 | 273*40 | 356*36 | 426*13 |
| 219*20 | 273*42 | 377*9 | 426*14 |
| 219*22 | 273*45 | 377*10 | 426*17 |
| 219*24 | 298.5*36 | 377*12 | 426*20 |
| 219*25 | 325*8 | 377*14 | 426*22 |
| 219*26 | 325*9 | 377*15 | 426*30 |
| 219*28 | 325*10 | 377*16 | 426*36 |
| 219*30 | 325*11 | 377*18 | 426*40 |
| 219*32 | 325*12 | 377*20 | 426*50 |
| 219*35 | 325*13 | 377*22 | 457*9.5 |
| 219*38 | 325*14 | 377*25 | 457*14 |
| 273*7 | 325*15 | 377*32 | 457*16 |
| 273*8 | 325*16 | 377*36 | 457*19 |
| 273*9 | 325*17 | 377*40 | 457*24 |
| 273*9.5 | 325*18 | 377*45 | 457*65 |
| 273*10 | 325*20 | 377*50 | 508*13 |
| 273*11 | 325*22 | 406*9.5 | 508*16 |
| 273*12 | 325*23 | 406*11 | 508*20 |
| 273*13 | 325*25 | 406*13 | 508*22 |
| 273*15 | 325*28 | 406*17 | 558.8*14 |
| 273*16 | 325*30 | 406*22 | 530*13 |
| 273*18 | 325*32 | 406*32 | 530*20 |
| 273*20 | 325*36 | 406*36 | 570*12.5 |
| 273*22 | 325*40 | 406*40 | 610*13 |
| 273*25 | 325*45 | 406*55 | 610*18 |
| 273*28 | 356*9.5 | 406.4*50 | 610*78 |
| 273*30 | 356*12 | 406.4*55 | 624*14.2 |
| 273*32 | 356*15 | 406*60 | 824*16.5 |
| 273*35 | 356*19 | 406*65 | 824*20 |
Канкурэнтныя перавагі:

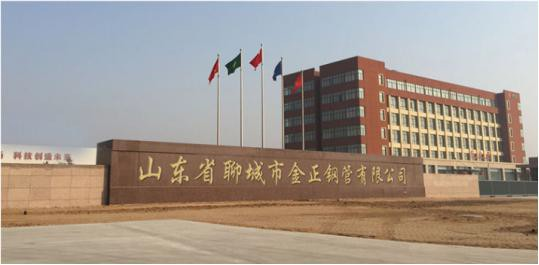

Shandong Liaocheng Jinzheng Steel Pipe Co., Ltd. was established in 2011 and is located in Liaocheng, a beautiful and rich water city in the north of Jiangxi. The company is one of the leading steel pipe manufacturing industries in the province. It has invested assets of
1.02 billion, covers an area of 180 acres, and has 360 employees. , 4 senior engineers, more than 30 technicians. There are 3 domestic advanced hot-rolled production lines, mainly producing seamless steel pipes of various materials. The annual production capacity is 300,000 tons, and the annual income is more than 2 billion yuan.
The company is based on the sales of seamless steel pipes produced by the company, and also acts as an agent for various seamless steel pipes of large domestic steel companies such as Baosteel, Tiangang, Hengyang Hualing,Baotou Steel, Chengdu, etc. The annual reserve outer diameter is6-824mm and the wall thickness is1 -120mm, a total of more than5000 specifications of structural pipes, fluid pipes, low and medium pressure boiler pipes, high pressure pipes, petroleum cracking pipes and various alloy steel pipes, and distribute profiles and plates produced by major domestic steel plants. The company has 20,000 square meters. Its storage base maintains an inventory of about 25,000 tons throughout the year. Complete specifications, convenient and fast loading.
Boiler tubes are a type of product that is resistant to rust, acid, and corrosion, and are widely used in light industry, heavy industry, daily necessities, and decoration industries. The main characteristics of high-pressure boiler tubes include good mechanical properties, weldability, cold and hot workability, and corrosion resistance. They have good low-temperature toughness and are mainly used in shipbuilding, boilers, pressure vessels, oil storage tanks, bridges, power plant equipment, lifting and transportation machinery, etc.
In 2011, it passed the ISO9001international quality management system certification, the American Petroleum Institute API audit certification, the top100 Chinese steel trade enter- prises, the best credit and integrity customer in the Shandong banking industry, and the third place in the top100 Shandong pipe production enterprises in 2015. The executive vice president unit of the Provincial Association of Small and Medium Enterprises.Company tenet: "Serve customers with strict management, good reputation, strong strength,best quality products, and lowest price. Adhering to: Survive by quality, develop by reputation, profit by small profits, Sincerely make friends, continue to develop, and continuously reform the strategy, and we are willing to join hands with people from all walks of life at home and abroad to encourage and seek a new chapter of prosperity.
Наша дружная каманда будзе рада пачуць ад вас!
