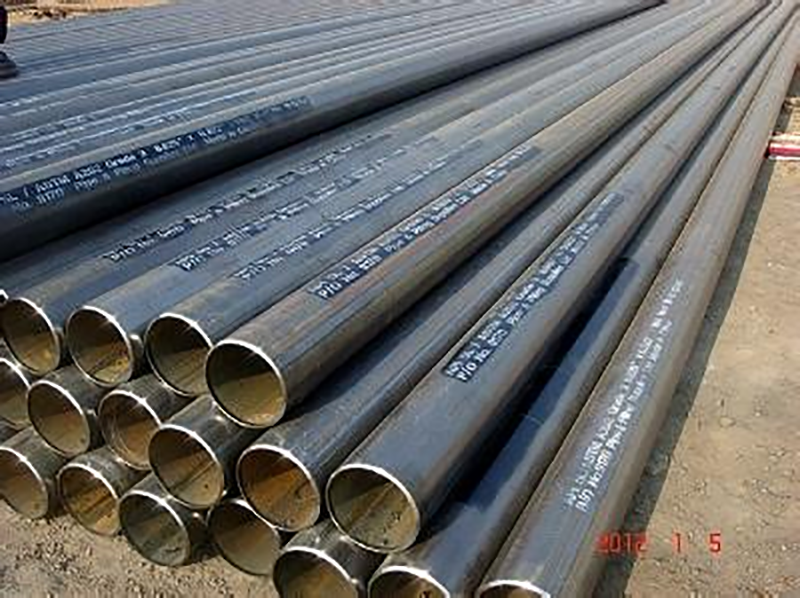

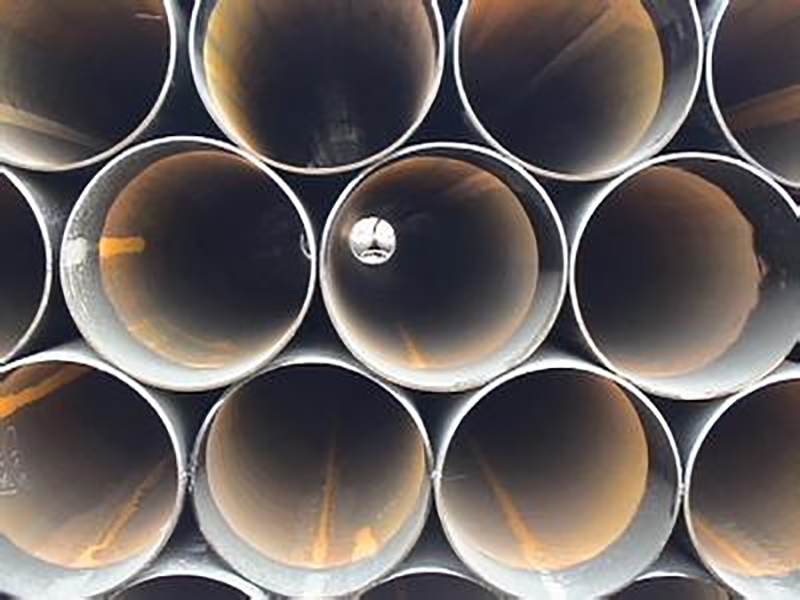

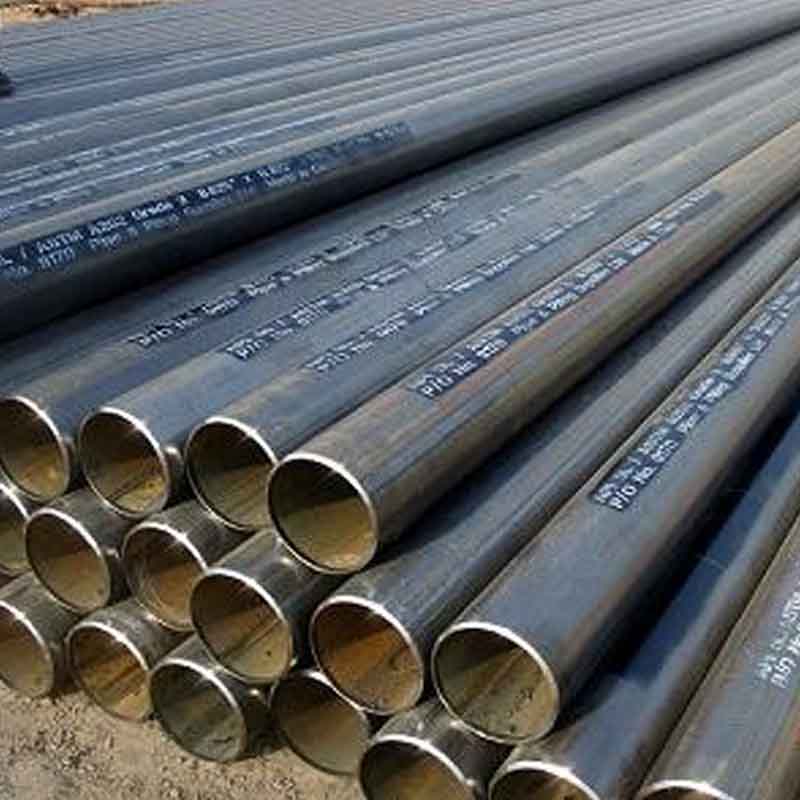

Q235 20# ERW/LASW paip dikimpal untuk air/gas/minyak

Tempat Asal:	Shandong, China
Nama jenama:	Changshengda(CSD)
Nombor model:	Q195/Q235/Q345 SS400
Persijilan:	API, CE, GS, ISO9001
Kuantiti Pesanan Minima:	20 tan
Harga:	545USD/TAN-680USD/TAN
Pembungkusan Details:	1. Pembungkusan Marin Standard
	2.Mengikut kehendak pelanggan
Port:	Pelabuhan Shanghai, Tianjin, Qingdao, anda boleh menentukan pelabuhan lain mengikut keperluan anda.
Masa Penghantaran:	8-14days
Pembayaran Terma:	L / C, T / T
Bekalan Keupayaan:	100000tan/bulan
bahan:	ERW:Q235, Q345, 20#, J55, X42~65, dsb.
	LASW:Q195,Q235,Q345B,X42,X52,X60,S355JRH,S355J0H,S355J2H etc

Penerangan:

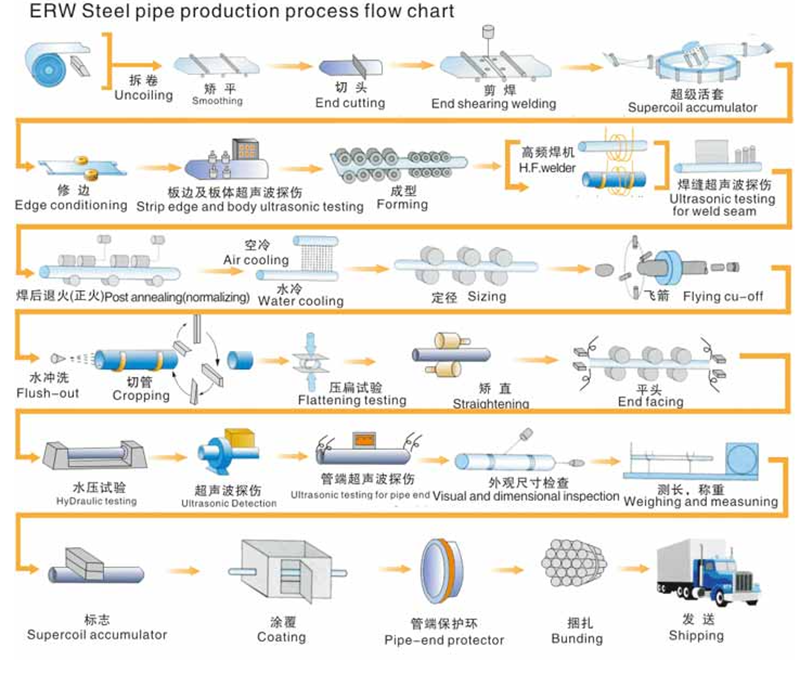

Straight seam high frequency (ERW) is divided into two forms: induction welding and contact welding according to different welding methods. It uses hot-rolled wide coils as raw materials and undergoes pre-bending, continuous forming, welding, heat treatment, sizing, straightening, cutting, etc. Compared with the spiral process, it has the advantages of shorter welds, high dimensional accuracy, uniform wall thickness, good surface quality, and high pressure resistance. However, the disadvantage is that it can only produce thin-walled pipes of small and medium diameters, and gray spots and lack of fusion are prone to occur at the welds. , Groove corrosion defects. At present, the most widely used fields are city gas, crude oil and refined oil transportation, etc.

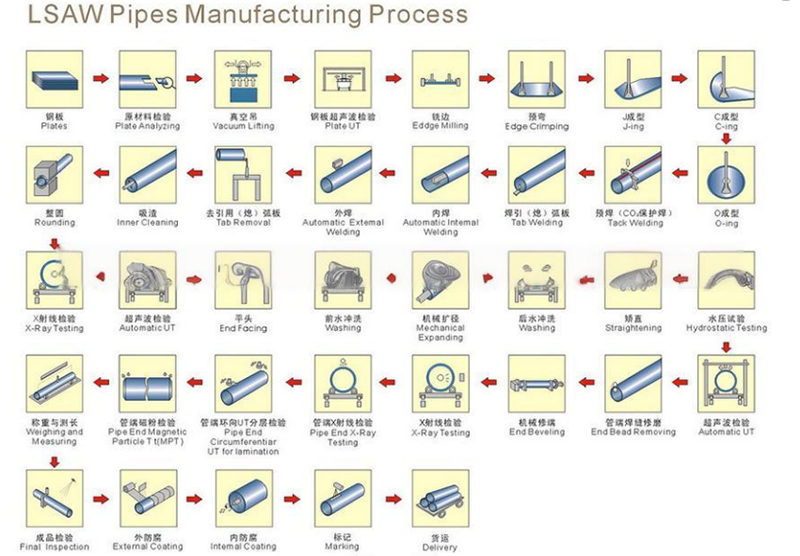

Straight seam submerged arc (LSAW) is produced by using a single medium-thick plate as raw material, pressing (rolling) the steel plate in a mold or forming machine, and using double-sided submerged arc welding and diameter expansion. Its finished product specifications range is wide, the toughness, plasticity, uniformity and density of the weld are good, and it has the advantages of large pipe diameter, thick pipe wall, high pressure resistance, low temperature resistance and strong corrosion resistance. When constructing high-strength, high-toughness, and high-quality long-distance oil and gas pipelines, most of the required steel pipes are large-diameter, thick-walled straight seam submerged arc pipes. According to API standards, in large-scale oil and gas transmission pipelines, straight-joint submerged arc is the only designated applicable pipe type when passing through Class 1 and Class 2 areas such as alpine zones, seabed, and densely populated urban areas.

Mengikut kaedah pengacuan yang berbeza, ia boleh dibahagikan kepada:

UOE steel pipe: After the single steel plate is pre-bent at the edge, it undergoes processes such as U forming, O forming, internal welding, external welding, and mechanical cold expansion.

JCOE steel pipe: that is, pre-welding, forming, and cold expansion after welding according to "J-C-O-E"

HME steel pipe: formed by mandrel rolling method according to "C-C-O", welded and then cold expanded.

Spesifikasi:

PAIP ERW
ASTM	ASTM A53 B, ASTM A178, ASTM A252 GR.2, A500, ASTM A513
EN	EN 10204/10217 S235JR,S275JR,S355,S355JR,S355J2H
API	API 5L X42/46/52/56/60/70
keluli karbon	ASTM A671, ASTM A672
Besi aloi	ASTM A691
OD	1/2" -24" (21.3mm-610mm)
WT	1.65mm-20mm
Kesesuaian	Paip Talian ; OCTG (Oil Country Tubular Goods);Paip Struktur Bulat; Paip Salutan.

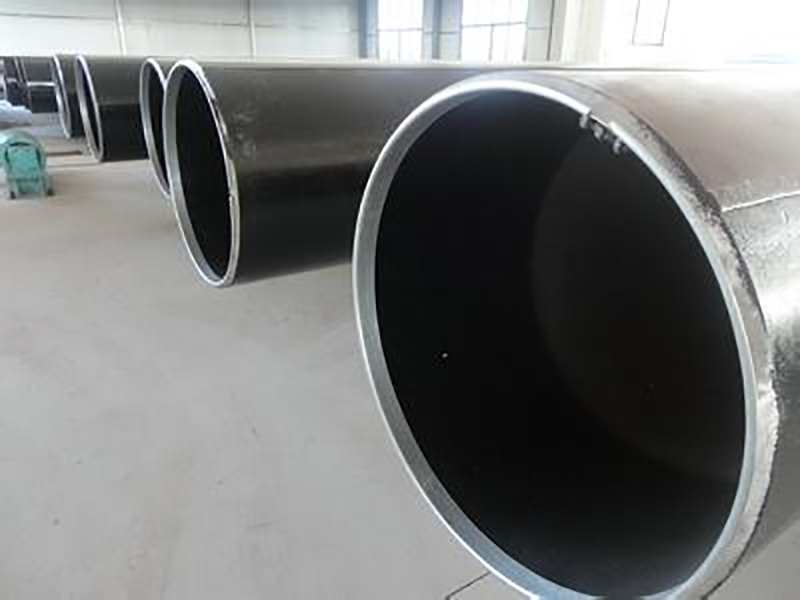

PAIP LSAW
Standard	ASTM 53 ;API Spec 5L;ASTM A252-89; EN10217, EN10219
Gred Keluli	API 5L: GR A, GR B, X42, X46, X56, X60, X65, X70ASTM A252 GR 1, GR 2, GR 3ASTM A53: GR A, GR B, GR C, GR DBS 4360: Grade 43, Grade 50EN: S275, S275JR, S355JRH, S355J2H
Kesesuaian	Digunakan untuk minyak/gas/air;Transmisi;Kejuruteraan;projek Luar Pesisir.
Penggunaan	OD (mm)	WT(mm)	PANJANG(m)
Paip penggelek	1200-3800(47.24”-150”)	12-120 (1/2”- 4.7”)	<= 3.2
untuk Pembinaan (Cucuk Paip)	350-1600(14”- 63”)	6-60 (1/4” -2.36”)	6-12
Saluran paip minyak & gas	406-1524(16”- 60”)	6-40 (1/4”-1.57”)	8-12.1
Selain spesifikasi di atas, paip boleh dihasilkan mengikut keperluan pelanggan.

Cepat Detail:

Penerangan:

Cecair tekanan rendah menyampaikan paip keluli jahitan lurus

Diameter: 219mm ~ 508mm

Ketebalan dinding: 6mm~20mm

Standard: GB / T 3091-2008

Bahan: L245~L690, Q235, dsb.

Applications: Suitable for straight seam welded steel pipes used in the transportation of low-pressure fluids such as water, gas, air, and heating steam and other structures.

Paip keluli dikimpal jahitan lurus standard Amerika

Diameter: 219mm ~ 406mm

Ketebalan dinding: 6mm~14mm

Standard: ASTM

Bahan: GrA GrB

Applications: Mainly used in water conservancy projects, oil and gas industry, chemical industry, electric power industry, agricultural irrigation, urban construction, etc.

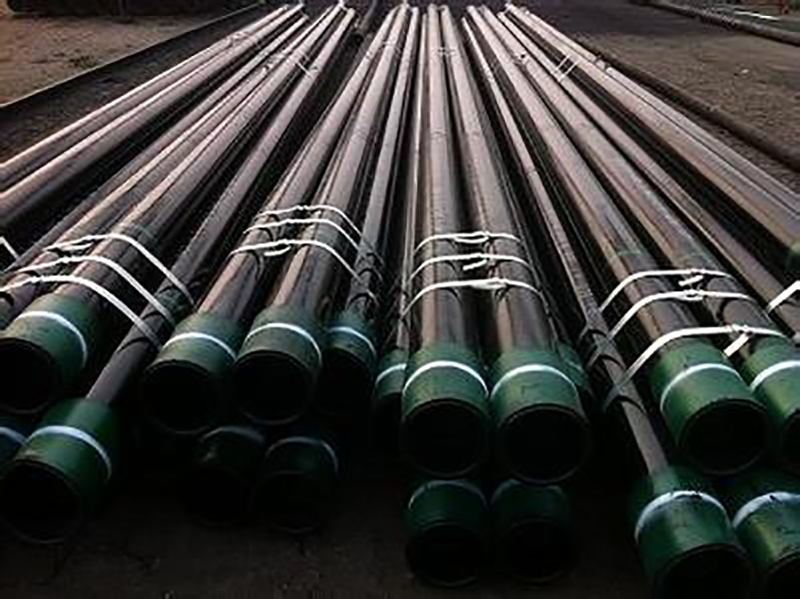

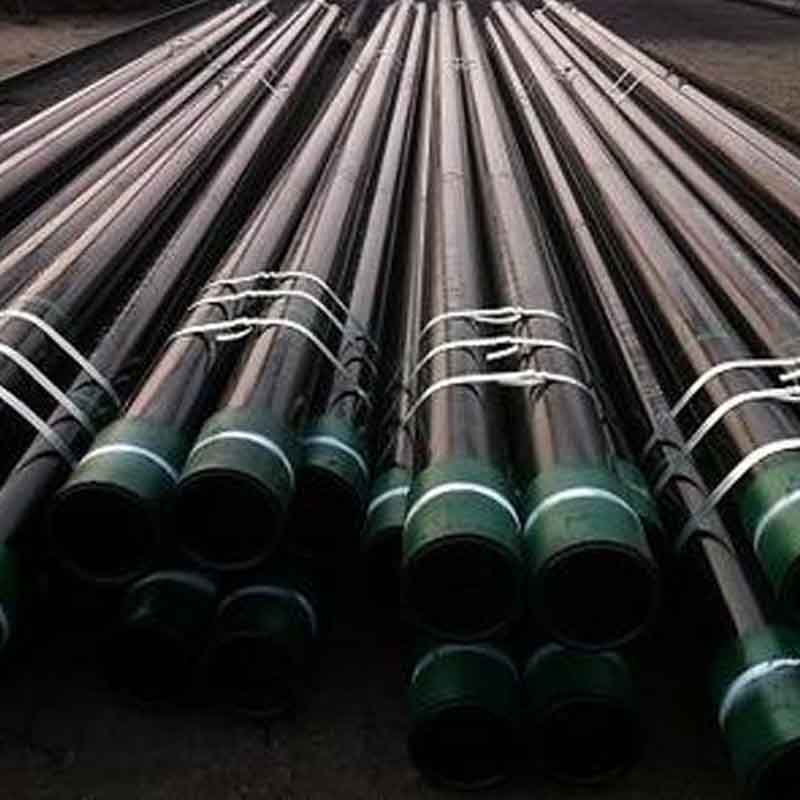

Paip keluli jahitan lurus untuk selongsong minyak dan paip minyak

Diameter 219mm~508mm

Ketebalan dinding 6mm~20mm

API-5CT standard

Bahan H40, J55, N80, P110

Permohonan: Selongsong minyak dan tiub.

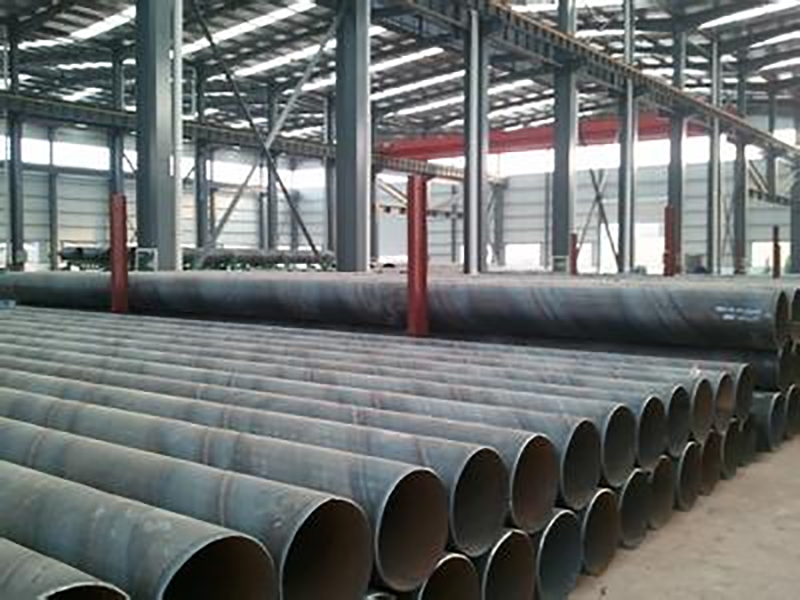

Paip keluli dikimpal lingkaran standard Amerika

Diameter 219mm~3520mm

Ketebalan dinding 5mm~26mm

ASTM standard

Bahan Gr.A, Gr.B, Gr.C, Gr.1~Gr.11

Application: Mainly used in pile pipes for water conservancy projects, oil and gas industry, chemical industry, electric power industry, agricultural irrigation, urban construction, etc.

Paip keluli saluran paip jahitan lurus untuk pengangkutan minyak dan gas

Diameter 219mm~508mm

Ketebalan dinding 6mm~20mm

API-5L standard

Bahan Gr.B, X42~X100

Permohonan: Digunakan untuk pengangkutan minyak dan gas asli.

Kelebihan daya saing:

The company has selected internationally advanced technology and equipment: such as W-FF molding, solid-state high-frequency induction welding, ultrasonic flaw detection, magnetic flux leakage detection, and high-end testing instruments: such as metallographic analysis, Vickers hardness tester, impact testing machine, spectrometer Analyzers, universal testing machines and other equipment. Since its establishment, it has obtained various international certifications and honorary qualifications: such as API 5L, API5CT, ISO9002-2000 pressure pipeline production license, industrial product production license, China Petroleum and Petrochemical Membership Certificate, China Quality Product Certificate, etc. Products are exported to South America, North America, the European Union, Southeast Asia and other places. It has been well received by customers all over the world for many years.
